Opti-Tap to Opti-tap Connector Drop Cable
-
Product Model
1F, Singlemode OS2, Opti-Tap Connector to Opti-Tap Connector, Gill-filled, SST Toneable Cable
Product Description
The Optitap drop cable assembly from AngNet features factory-terminated, environmentally sealed, and ruggedized connectors, reducing the cost and time of drop cable deployment in optical access networks. It provides a robust and sealed connection solution for Fiber-to-the-Home (FTTH) connections. Inside the Optitap termination, a pre-polished SC/APC connector is used, which is protected by the ruggedized housing of the OptiTap. This connector is resistant to high and low temperatures, weatherproof, UV-resistant, and waterproof, making it suitable for various application harsh environments. The connector is compatible with Optitap adapters and offers extremely low optical insertion loss. OptiTap connector can be used with SST or ROC Flat cables or traditional round OSP cables, providing an ideal solution for direct burial, conduit, or aerial installations.
-
- Compatible with Corning-OptiTap and H-Connector;
- Factory terminated for high performance;
- Available with one or both ends connectorized;
- Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
- Available in dielectric or toneable;
- Designed for aerial, direct-buried or duct installation;
- IP-68 water and dust protection ;
- -40℃~85℃ operating temperature;
-

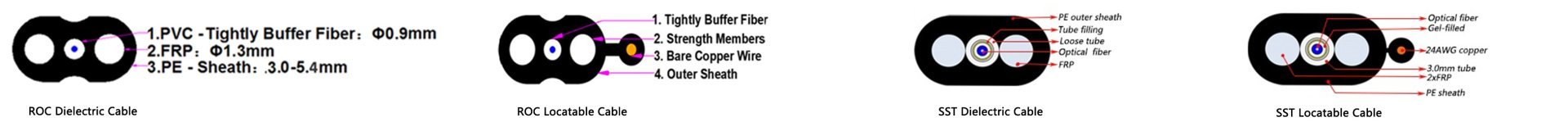

Product name OptiTap to OptiTap Drop Cable Cable Type dielectric or Toneable Cable diameter 4.5*9.8mm SST Toneable cable or 4.5*8.1mm SST-Dielectric cable Application Aerial , Direct Buried , Duct Termination Both end or one end Specifications - Connector A Reflectance, Typical -65 dB Insertion Loss, Typical ≤ 0.15 dB Connector Type SC/APC OptiTap connector(H Connector) Specifications - Connector B Reflectance, Typical -65 dB Insertion Loss, Typical ≤ 0.15 dB Connector Type SC/APC OptiTap connector(H Connector) Optical Characteristics Fiber Type Single-mode Fiber count 1F Fiber Category G.657A1 Wavelengths 1310 nm / 1550 nm Maximum Attenuation 0.35 dB/km / 0.25 dB/km -
- FTTH;
- Outdoor Areas;
- Harsh Environment.
-
Please contact our sales team
Category:
Opti-Tap
- 产品描述
- Features
- Specification
- Application
- Download
-
- Compatible with Corning-OptiTap and H-Connector;
- Factory terminated for high performance;
- Available with one or both ends connectorized;
- Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
- Available in dielectric or toneable;
- Designed for aerial, direct-buried or duct installation;
- IP-68 water and dust protection ;
- -40℃~85℃ operating temperature;
-
Product name OptiTap to OptiTap Drop Cable Cable Type dielectric or Toneable Cable diameter 4.5*9.8mm SST Toneable cable or 4.5*8.1mm SST-Dielectric cable Application Aerial , Direct Buried , Duct Termination Both end or one end Specifications - Connector A Reflectance, Typical -65 dB Insertion Loss, Typical ≤ 0.15 dB Connector Type SC/APC OptiTap connector(H Connector) Specifications - Connector B Reflectance, Typical -65 dB Insertion Loss, Typical ≤ 0.15 dB Connector Type SC/APC OptiTap connector(H Connector) Optical Characteristics Fiber Type Single-mode Fiber count 1F Fiber Category G.657A1 Wavelengths 1310 nm / 1550 nm Maximum Attenuation 0.35 dB/km / 0.25 dB/km -
- FTTH;
- Outdoor Areas;
- Harsh Environment.
-
Please contact our sales team
